How to Replace the Laptop BIOS Chip?
Introduction
If your system shows no boot or corrupted firmware symptoms, the BIOS chip may need replacement.
Common BIOS Chip Failure Symptoms
Replacing a laptop BIOS chip is a common repair procedure for systems that fail to boot or show firmware corruption. BIOS chips store the motherboard’s firmware, including hardware initialization routines and bootloader information. When a BIOS chip is damaged or corrupted, replacing it with a verified pre-programmed BIOS chip is often the most reliable solution.
In this guide, we will explain how laptop BIOS chip replacement works and best practices for safe and professional repair.
Tools and Materials Needed
Before starting, ensure you have the following tools:
-
SPI programmer (e.g., CH341A)
-
Hot air rework station or soldering tools
-

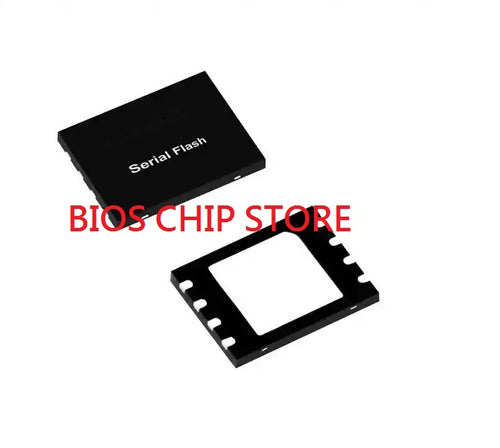

Pre-programmed BIOS chip compatible with your laptop model
-
Anti-static wrist strap
-
Precision screwdrivers
-
Magnifying glass or microscope for chip inspection
⚠ Always work in an ESD-safe environment to avoid damaging sensitive components.
Step 1: Identify the BIOS Chip
-
Power off the laptop and remove the battery.
-
Open the laptop casing to access the motherboard.
-
Locate the BIOS chip, usually an 8-pin SOIC SPI flash IC, often near the southbridge or chipset.
-
Verify the chip markings (e.g., 25Q64FV) and match it with the pre-programmed replacement.
Tip: Use the motherboard manual or online resources to confirm the exact BIOS chip model.
Most modern BIOS chips use SPI flash memory rather than traditional EEPROM.
BIOS Flash vs EEPROM Explained
Before removing the chip, confirm the exact SPI flash model such as 25Q128.
How to Identify 25Q128 BIOS IC?
Step 2: Remove the Faulty BIOS Chip
Option A: Socketed BIOS Chip
-
Some laptops use socketed chips.
-
Carefully pry the chip out with a chip puller or small flat tool.
Option B: Soldered BIOS Chip
-
Most modern laptops have soldered chips.
-
Use a hot air rework station to heat the solder evenly.
-
Gently lift the chip using tweezers when the solder melts.
⚠ Take care not to damage nearby components.
Step 3: Program the Replacement BIOS Chip
If you are not using a pre-programmed chip:
-
Connect the chip to an SPI programmer.
-
Load the correct firmware file for your laptop model.
-
Write the firmware and verify checksum integrity.
-
Test the chip in a breakout board (optional) before installing.
✅ Recommendation: Use pre-programmed BIOS chips whenever possible to reduce risk.
Step 4: Install the New BIOS Chip
-
Align the new chip correctly with the pin 1 marking.
-
Gently press into socket or solder in place using proper technique.
-
Check for proper alignment and solder joints.
-
Reassemble the laptop casing.
Step 5: Test the Laptop
-
Reconnect battery and power on the laptop.
-
Check for POST (Power-On Self-Test) success.
-
Verify BIOS settings and boot into the operating system.
-
If the system fails to boot, recheck firmware version and chip orientation.
Safety Tips and Best Practices
-
Always wear an anti-static wrist strap.
-
Do not apply excessive heat during soldering.
-
Use verified firmware files to prevent corruption.
-
Label chips carefully if handling multiple models.
-
Backup original BIOS firmware if possible.
Signs You Need BIOS Chip Replacement
-
Laptop shows no boot or black screen.
-
BIOS update failed or was interrupted.
-
Firmware corruption caused continuous reboot.
-
Motherboard previously experienced electrical surge or short circuit.
Replacing the BIOS chip often restores functionality more reliably than attempting re-flashing on a damaged chip.
Conclusion
Laptop BIOS chip replacement is a precise process requiring proper tools and verified firmware. Using pre-programmed BIOS chips and following careful ESD-safe procedures ensures reliable repair and reduces the risk of further motherboard damage. Understanding the process is essential for professional technicians handling laptop firmware failures.
