How Does a Laptop BIOS Chip Work?
A laptop’s BIOS chip might be small, but it executes the first instructions that bring the entire system to life. From the instant you press the power button, the CPU relies on the firmware stored in this chip to run POST, initialize hardware, and load a bootloader for your operating system. This article explains the end‑to‑end workflow in a clear, technician‑friendly way.
1) Where the BIOS Lives: SPI NOR Flash
Modern laptops store BIOS/UEFI firmware in a small SPI NOR flash device—usually an 8‑pin SOIC package (sometimes WSON‑8). Capacities commonly range from 8MB to 64MB, large enough to hold the UEFI core, Intel/AMD platform regions (e.g., ME/PSP), microcode, and OEM customizations. The SPI interface exposes four key signals: CLK, MOSI, MISO, and CS#; optionally HOLD# and WP#.

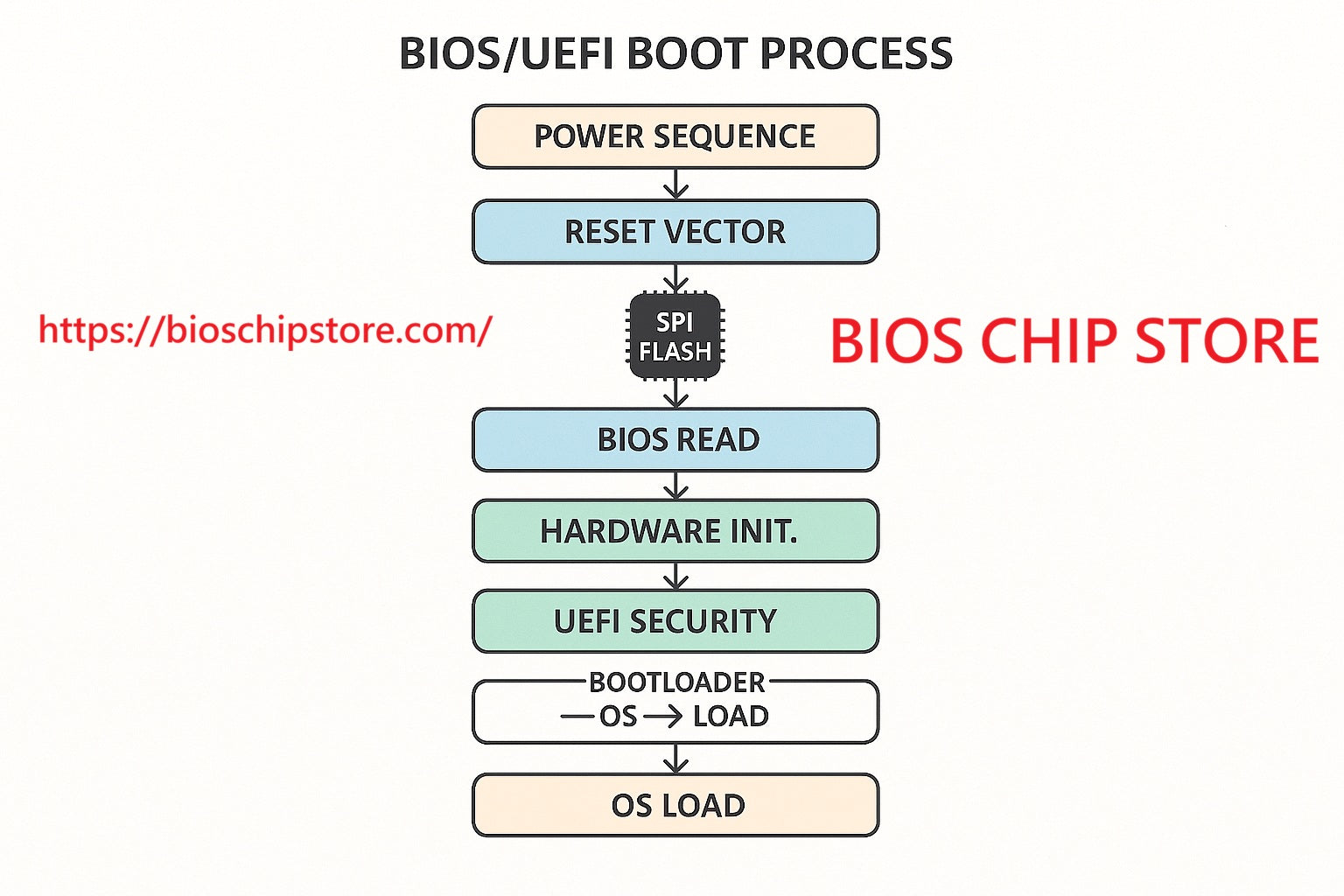

2) Power Button → Reset Vector
When you press the power button, the embedded controller (EC) and power rails begin sequencing. Once the CPU comes out of reset, it fetches the first instruction from a fixed reset vector that maps to the SPI flash address space. In other words, the CPU’s earliest code is executed directly (or indirectly via a tiny loader) from the contents of the BIOS chip.
3) POST: Power‑On Self‑Test
The firmware performs sanity checks and brings up critical blocks:
- CPU & microcode updates
- Memory training (timings, topology, stability)
- Chipset/PCH configuration and clocking
- GPU initialization (iGPU or dGPU)
- Storage & USB controller setup
- Embedded controller (EC) synchronization
Failures here show up as black screen, no POST/no beep, or LED/beep codes—classic symptoms of BIOS or platform initialization trouble.
4) Hardware Initialization & Hand‑Off
After the platform is stable, the firmware builds device tables, allocates memory for runtime services, and locates a boot device. Control is then handed to the bootloader (e.g., Windows Boot Manager, GRUB), which loads the operating system kernel.
5) Security in Modern UEFI
Current systems add multiple trust checks:
- Secure Boot – verifies the bootloader and OS signatures
- TPM/fTPM – measured boot, key storage, policy enforcement
- Intel Boot Guard (or OEM equivalents) – verifies firmware authenticity
- Rollback protection – blocks outdated or tampered images
If these validations fail, the system intentionally refuses to boot to protect the platform.
6) Why BIOS Corruption Breaks Boot
A corrupted image (power loss during update, wrong file, failing flash) can disrupt any stage: reset vector fetch, ME/PSP startup, memory training, or bootloader discovery. Typical field symptoms include black screen, boot loops, no POST/no beep, or unresponsive keyboard/USB during early boot.
7) Reflash or Replace: Practical Repair Paths
Technicians typically try, in order:
- In‑circuit reflash with a clip and SPI programmer (CH341A, TL866II, RT809H). Backup → erase → write → verify.
- Hot‑air removal and socket programming when the board back‑powers the chip or detection fails.
- Pre‑programmed replacement chip when the device is physically damaged or repeated writes fail.
Identity data (DMI/Serial/UUID/MAC) should be preserved or restored to prevent later service issues.
Key Takeaways
- The BIOS chip stores the earliest code your CPU executes, making it the foundation of the entire boot process.
- POST sequences and UEFI security decide whether the system is healthy and trusted before the OS runs.
- Most “no boot / black screen” cases can be solved by correct reflash—or by installing a pre‑programmed, tested replacement.
