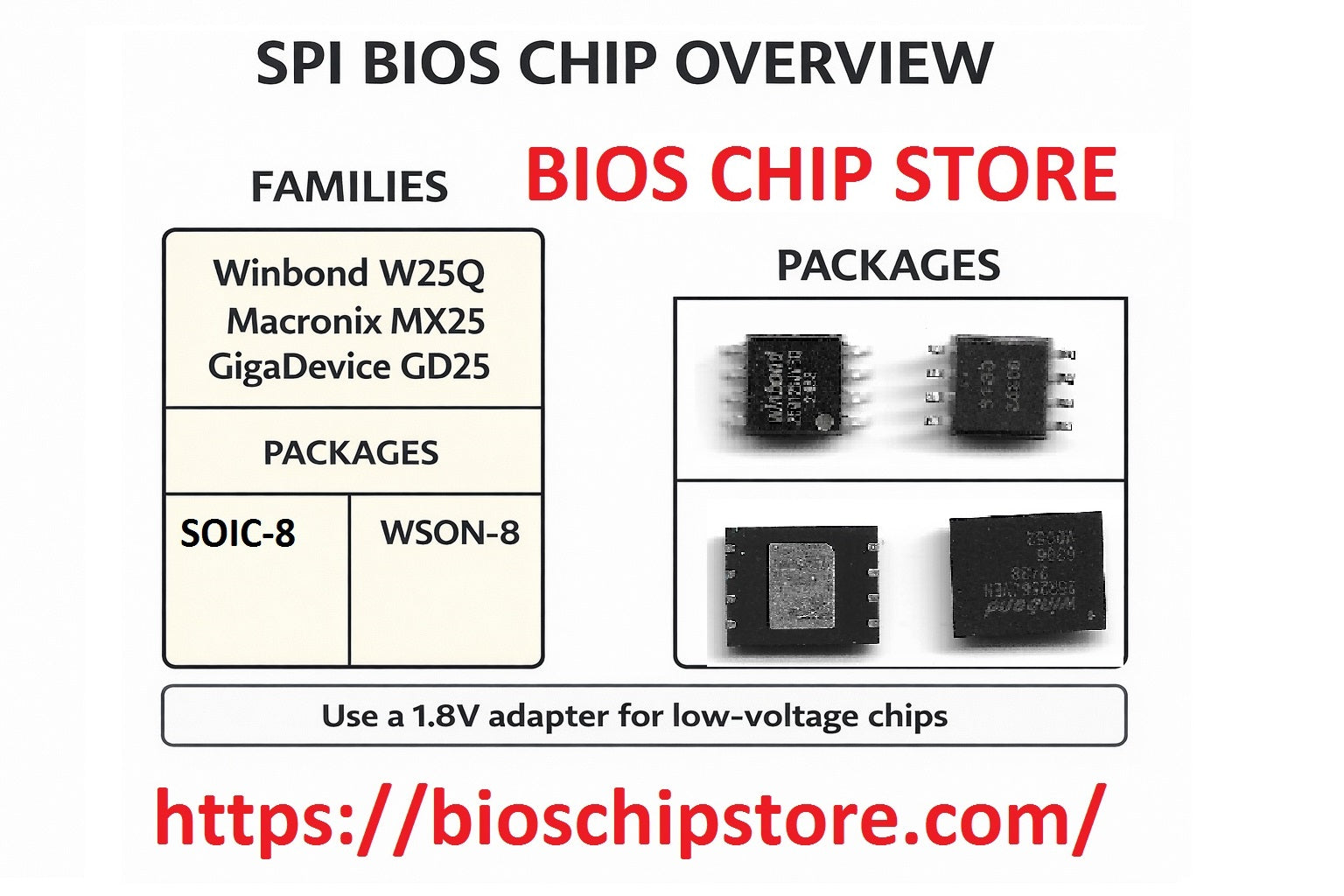

SPI BIOS chip overview diagram showing common SPI NOR families (Winbond W25Q, Macronix MX25, GigaDevice GD25), SOIC‑8 and WSON‑8 packages.

SPI BIOS Chips Explained

SPI BIOS chips are the small SPI NOR flash devices that store BIOS/UEFI firmware on modern motherboards. They provide fast, random read access and support early code execution during boot. This article explains what SPI BIOS chips are, how they differ from other flash types, and how technicians identify the right part. For the complete knowledge hub, see the BIOS Guide.

1) What Is an SPI BIOS Chip?

An SPI BIOS chip is a SPI NOR Flash memory device connected to the platform controller over the Serial Peripheral Interface. During power‑on, the CPU fetches early instructions from this chip via the SPI bus before DRAM is available. Because of this role, SPI NOR is optimized for fast random reads and reliability rather than raw capacity.

Background concepts are covered in How SPI Flash Works and BIOS Boot Process Explained.

2) Why SPI NOR Is Used for BIOS/UEFI

Execute In Place (XIP) – firmware code can be read directly without copying to RAM.
Predictable latency – essential for POST and early initialization.
Low pin count – typically 8‑pin packages simplify routing.
High reliability – suitable for critical boot code.

For a deeper firmware view, see BIOS Firmware Architecture.

3) Common SPI BIOS Chip Families

Most BIOS chips belong to a few well‑known SPI NOR families:

Winbond W25Q series – very common on laptops and desktops.
Macronix MX25 series – includes 3.3V (MX25L) and 1.8V (MX25U) variants.
GigaDevice GD25 series – widely used across OEM platforms.

Capacity variants such as 64Mbit, 128Mbit, 256Mbit, and 512Mbit determine how much firmware the chip can store. See comparisons in 128Mbit vs 256Mbit vs 512Mbit BIOS Chips.

4) Packages: SOIC‑8 vs WSON‑8

SPI BIOS chips most commonly appear in two packages:

SOIC‑8 – gull‑wing leads, easier to clip or desolder.
WSON‑8 – leadless package with a bottom pad; requires hot‑air or rework skill.

Package identification guides: SOIC‑8 vs WSON‑8 vs DIP‑8 and WSON‑8 Bottom Pad Layout.

5) Voltage: 3.3V vs 1.8V

Not all SPI BIOS chips use the same voltage. Older designs are typically 3.3V, while many newer laptops use 1.8V parts. Using the wrong voltage can cause read failures or permanently damage the chip.

Always verify voltage before programming and use a proper adapter for low‑voltage parts. See 3.3V vs 1.8V BIOS Chips and 1.8V Adapter Usage Guide.

6) How Technicians Identify the Correct Chip

Read the top marking and match it to the datasheet.
Check capacity and voltage requirements.
Confirm the package (SOIC‑8 or WSON‑8).
Backup the original contents before any write operation.

Step‑by‑step instructions are available in How to Identify Your BIOS Chip Model.

7) Repair and Replacement Notes

If an SPI BIOS chip cannot be detected, fails verification, or shows signs of physical damage, the fastest and safest solution is often a pre‑programmed replacement chip. This avoids repeated flashing attempts and reduces turnaround time.
