3.3V vs 1.8V BIOS Chips

March 23, 2026

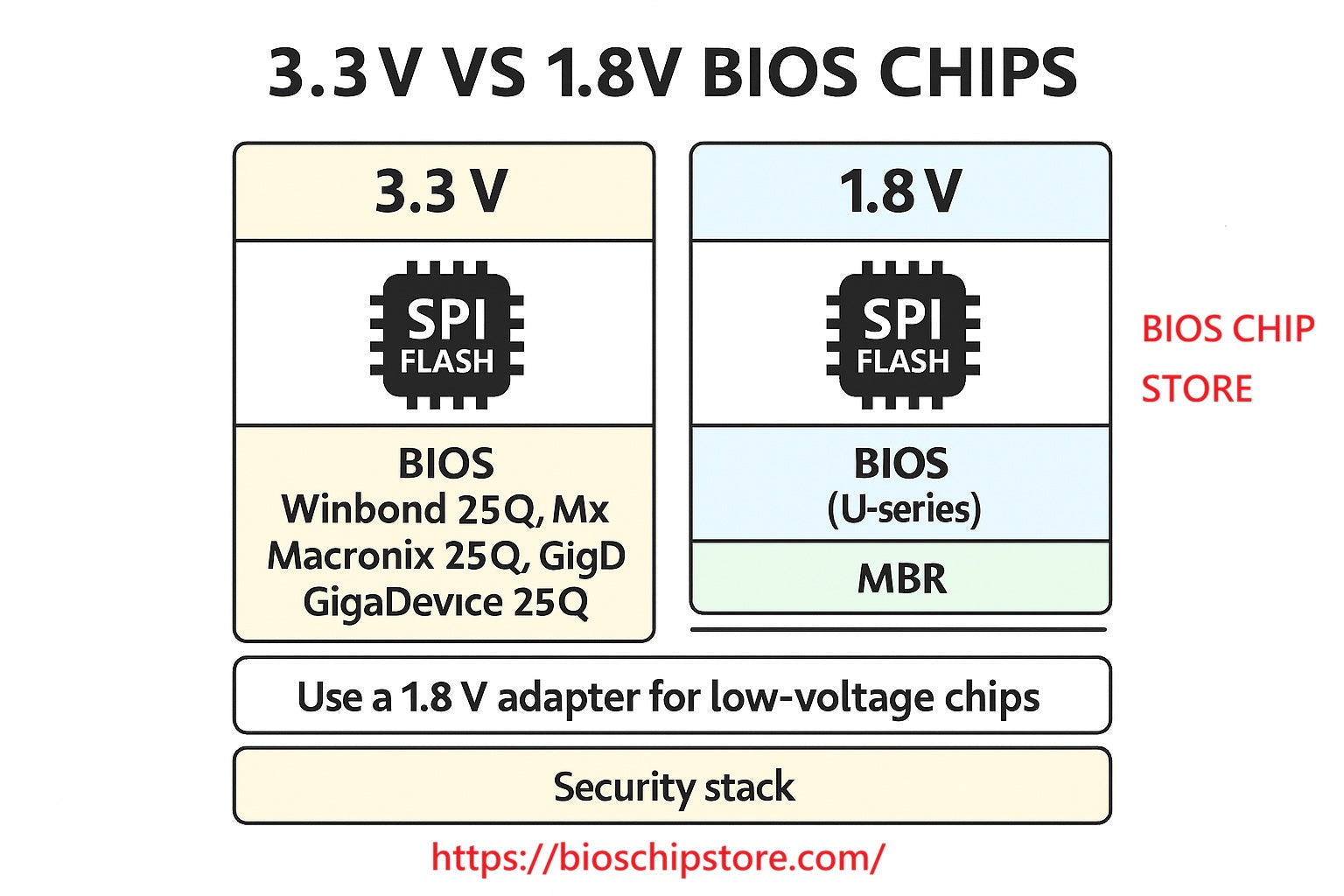

Voltage comparison of 3.3V vs 1.8V BIOS SPI flash chips with common families labeled: Winbond W25Q, Macronix MX25L, GigaDevice GD25Q (3.3V) vs MX25U, GD25LQ (1.8V), plus note to use a 1.8V adapter.

3.3V vs 1.8V BIOS Chips

Not all BIOS chips run at the same voltage. While many classic SPI NOR parts are 3.3V, a growing number of laptop platforms use low‑voltage 1.8V parts. Using the wrong voltage can prevent detection, corrupt firmware, or permanently damage the chip. For the complete knowledge hub, see the BIOS Guide.

1) Why Voltage Matters

Electrical limits — A 1.8V device may be damaged if driven at 3.3V; a 3.3V device may fail to read reliably if undervolted.
Signal levels — SPI logic thresholds differ; mis‑matched levels cause read/verify errors and “ID not detected.”
Boot reliability — Marginal voltage + long clip leads often equals unstable reads that pass once and fail later.

Background reading: How SPI Flash Works and SPI BIOS Chips Explained.

2) How to Identify 1.8V vs 3.3V Chips

Top marking — Some families use suffixes (e.g., “U” series) for 1.8V parts; 3.3V often lacks that suffix.
Datasheet family — Check the series table for Vcc ranges (typ. 1.7–2.0V vs 2.7–3.6V).
Board silkscreen/BOM — Motherboard prints or service manuals may note “1V8 BIOS.”

If you’re unsure, compare examples in How to Identify Your BIOS Chip Model and SOIC‑8 vs WSON‑8 vs DIP‑8. For bottom‑pad devices, see WSON‑8 Bottom Pad Layout.

3) Programmers & Adapters

A standard SPI programmer’s I/O is usually 3.3V. To work with 1.8V chips, use a level‑shifting 1.8V adapter:

Power the adapter from the programmer; verify adapter VCC = 1.8V.
Connect the adapter’s 1.8V header to the chip/clip—not the raw 3.3V pins.
Confirm orientation and that CS#/CLK/MOSI/MISO are mapped correctly.

Detailed guide: 1.8V Adapter Usage Guide. Programmer references: CH341A Programmer Complete Guide, TL866II Plus BIOS Flashing Tutorial, RT809H Advanced BIOS Programming Guide.

4) Safe Flashing Workflow

Identify the chip and voltage (marking → datasheet → board notes).
Backup a full dump; save multiple copies.
Adapt voltage — 1.8V parts require a proper adapter; never clip them directly to 3.3V.
Read → Erase → Program → Verify with stable wiring and short leads.
Re‑read & compare (hash) to ensure byte‑for‑byte integrity.

5) Common Failure Patterns

No detect/blank ID — Wrong voltage or back‑powering from the board. Remove battery/AC; isolate VCC or remove chip.
Verify fails — Borderline levels; check adapter seating, shorten clip leads, lower clock speed.
Dead after flash — Over‑voltage damage or wrong image. Re‑flash with correct file or install a pre‑programmed BIOS chip.

6) When to Prefer Replacement

If a chip won’t detect at the correct voltage or verify repeatedly fails, the fastest fix is a tested pre‑programmed replacement. This avoids repeated write stress and minimizes downtime.
