How to Identify Your BIOS Chip Model
Before repairing, reflashing, or replacing a BIOS chip, you must correctly identify the exact chip model. Using the wrong chip—or programming at the wrong voltage—can permanently damage the motherboard. This guide walks through the practical, technician-approved steps to identify your BIOS chip safely and accurately. For the complete reference hub, visit the BIOS Knowledge Hub.

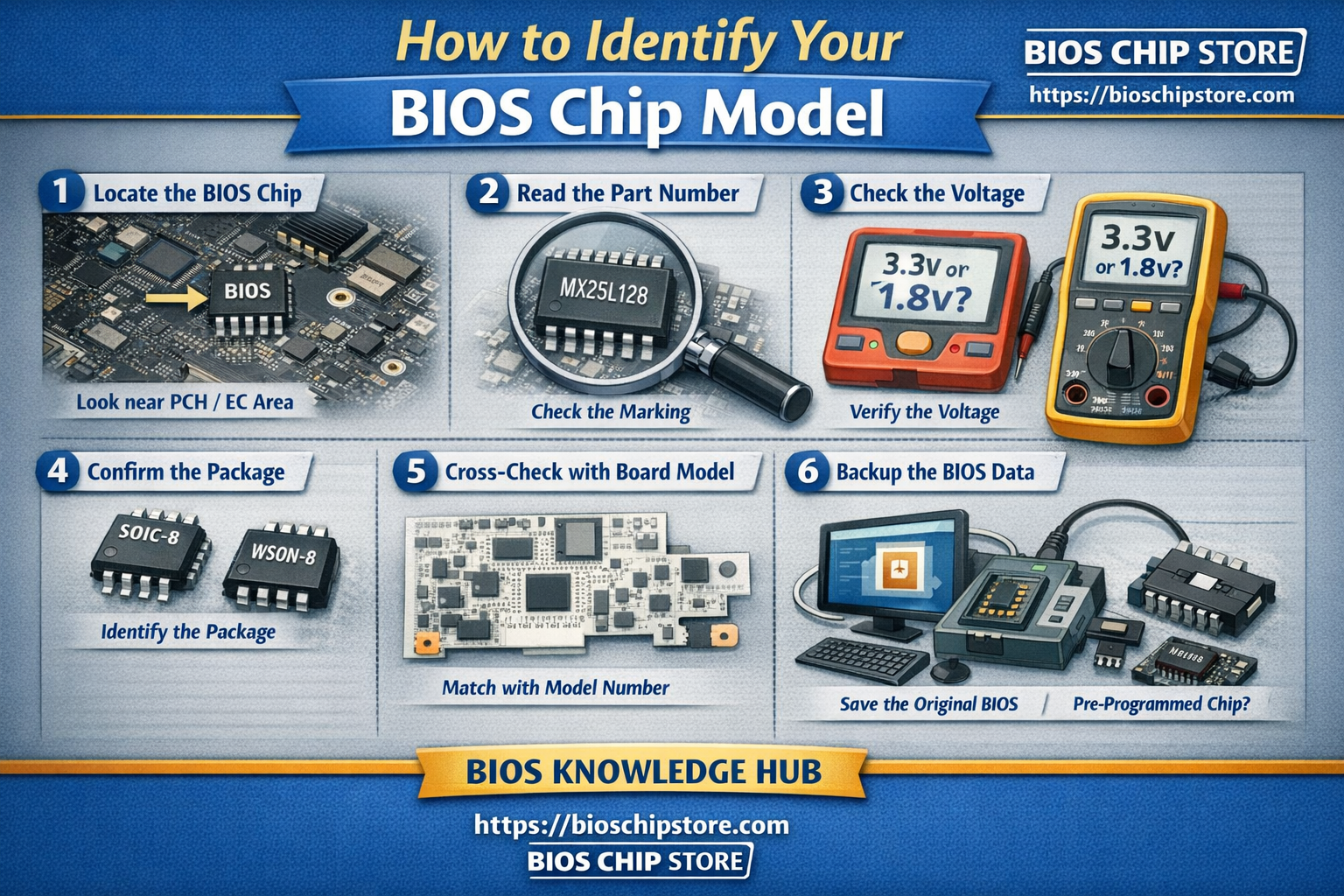

1) Locate the BIOS Chip on the Motherboard
The BIOS chip is usually a small 8‑pin SPI flash device located near the chipset (PCH) or EC area. On laptops, it may be labeled with silkscreen text such as BIOS, ROM, or U_BIOS. Some modern boards use multiple flash chips, so confirm you are working on the correct one.
If you are unsure how the firmware is used during startup, review BIOS Boot Process Explained and What Is a BIOS Chip and What Does It Do?.
2) Read the Top Marking (Part Number)
Most BIOS chips have a laser‑etched marking on the top surface. Common examples include:
- Winbond: W25Q64, W25Q128, W25Q256
- Macronix: MX25L128, MX25U256
- GigaDevice: GD25Q64, GD25Q128
The marking typically encodes:
- Manufacturer family
- Capacity (64Mbit, 128Mbit, 256Mbit, etc.)
- Voltage class
If the marking is unclear or partially erased, clean the surface gently and use magnification. Do not guess—always confirm with a datasheet.
3) Identify the Voltage (3.3V vs 1.8V)
Voltage is critical. Many newer laptops use low‑voltage 1.8V SPI flash chips, while older designs often use 3.3V. Applying 3.3V to a 1.8V chip can destroy it instantly.
To determine voltage:
- Check the datasheet for the identified part number
- Look for family suffixes (for example, many “U‑series” parts are 1.8V)
- Inspect motherboard silkscreen notes such as “1V8” near the chip
Detailed voltage guidance: 3.3V vs 1.8V BIOS Chips.
4) Confirm the Package Type
SPI BIOS chips are commonly found in two packages:
- SOIC‑8 – gull‑wing leads, easier to clip or solder
- WSON‑8 – leadless package with bottom pads
Package identification matters when ordering replacements or choosing programming methods. See visual guides: SOIC‑8 vs WSON‑8 vs DIP‑8 and WSON‑8 Bottom Pad Layout.
5) Cross‑Check with the Motherboard Model
Whenever possible, verify the chip model against the exact motherboard part number and revision. Different revisions of the same laptop model may use different BIOS chips. Service manuals, boardviews, or vendor repair notes can help confirm compatibility.
6) Backup Before Any Write Operation
Once the chip is identified:
- Use the correct voltage (1.8V adapter if required)
- Read and save a full backup of the original contents
- Verify the backup before erasing or programming
For SPI fundamentals, review How SPI Flash Works and SPI BIOS Chips Explained.
7) When Identification Fails
If the chip cannot be reliably identified or read:
- Remove the chip and read it off‑board
- Consult a known‑good donor board
- Consider a pre‑programmed replacement chip
