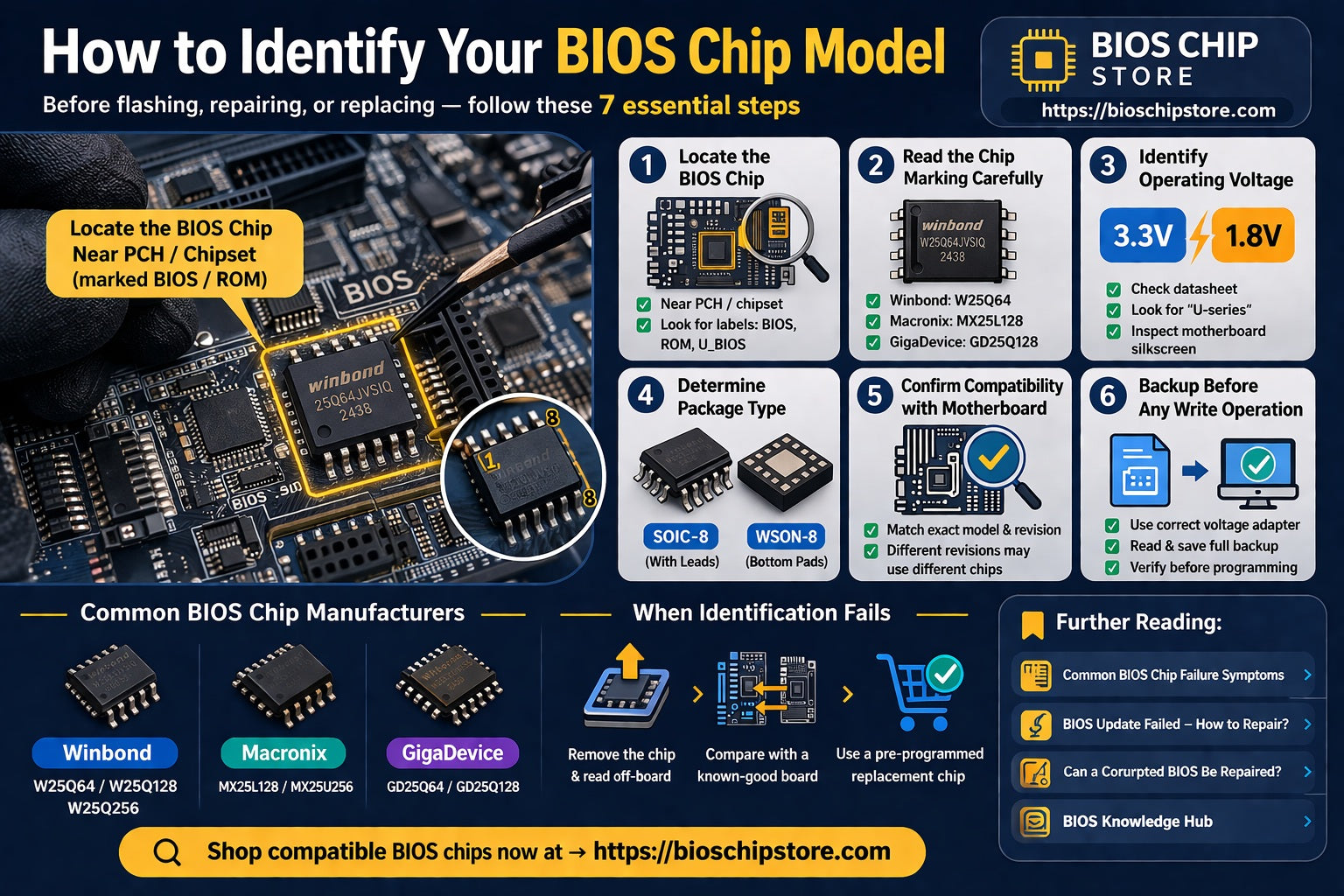

How to Identify Your BIOS Chip Model

Before flashing, repairing, or replacing a BIOS chip, it is critical to identify the exact BIOS chip model. Using the wrong chip or applying incorrect voltage can permanently damage the motherboard. This guide explains how to correctly identify your BIOS chip model step by step.

For a complete overview of BIOS repair workflows, visit the BIOS Knowledge Hub.

1) Locate the BIOS Chip on the Motherboard

The BIOS chip is typically a small 8‑pin SPI flash device located near the chipset (PCH) or marked with silkscreen labels such as BIOS, ROM, or U_BIOS. On some boards, multiple flash chips may be present, so be sure to identify the correct one.

If you are unfamiliar with how the BIOS is used during startup, review BIOS Boot Process Explained.

2) Read the Chip Marking Carefully

Most BIOS chips have a laser‑etched part number on the top surface. Common examples include:

• Winbond: W25Q64, W25Q128, W25Q256
• Macronix: MX25L128, MX25U256
• GigaDevice: GD25Q64, GD25Q128

The marking usually indicates the manufacturer family and storage capacity. Always refer to the datasheet to confirm details.

3) Identify the Operating Voltage (3.3V vs 1.8V)

Modern systems frequently use 1.8V BIOS chips instead of traditional 3.3V. Applying the wrong voltage during flashing can destroy the chip instantly.

To confirm voltage:

• Check the datasheet for the exact part number
• Look for voltage suffixes (for example, “U‑series” chips are often 1.8V)
• Inspect motherboard silkscreen markings near the chip

For a detailed comparison, see 3.3V vs 1.8V BIOS Chips.

4) Determine the Package Type

BIOS chips are commonly found in two package types:

• SOIC‑8 – with visible gull‑wing leads
• WSON‑8 – leadless package with bottom pads

Package identification is important for choosing the correct replacement and soldering method. Visual references are available in SOIC‑8 vs WSON‑8 vs DIP‑8 and WSON‑8 Bottom Pad Layout.

5) Confirm Compatibility With the Motherboard Model

Always cross‑check the BIOS chip model against the exact motherboard part number and revision. Different revisions of the same board may use different BIOS chips.

6) Backup Before Any Write Operation

Once the correct chip is identified:

• Use the correct voltage adapter if required
• Read and save a full backup of the original firmware
• Verify the backup before erasing or programming

For SPI fundamentals, review How SPI Flash Works and SPI BIOS Chips Explained.

7) When Identification Fails

If the chip marking is unreadable or the chip cannot be detected:

• Remove the chip and read it off‑board
• Compare with a known‑good donor board
• Use a pre‑programmed replacement BIOS chip
