BIOS Flash vs EEPROM
The terms BIOS Flash and EEPROM are often used interchangeably, but they are not the same. Understanding the differences is essential for firmware repair, BIOS recovery, and chip replacement. This article explains how BIOS Flash differs from EEPROM, and why modern laptops rely on SPI flash memory. For the complete reference hub, visit the BIOS Knowledge Hub.
1) What Is EEPROM?
EEPROM (Electrically Erasable Programmable Read-Only Memory) is a non-volatile memory technology that allows data to be erased and rewritten electrically. Early computer systems used EEPROM to store small configuration data or firmware.
Key characteristics of EEPROM include:
- Byte-level erase and write
- Relatively low storage capacity
- Slower write speed
- Higher cost per bit
2) What Is BIOS Flash Memory?
Modern systems store BIOS/UEFI firmware in Flash memory, specifically SPI NOR Flash. Unlike EEPROM, Flash memory erases data in blocks or sectors, allowing higher density and faster operation.
If you are new to SPI technology, review How SPI Flash Works and SPI BIOS Chips Explained.

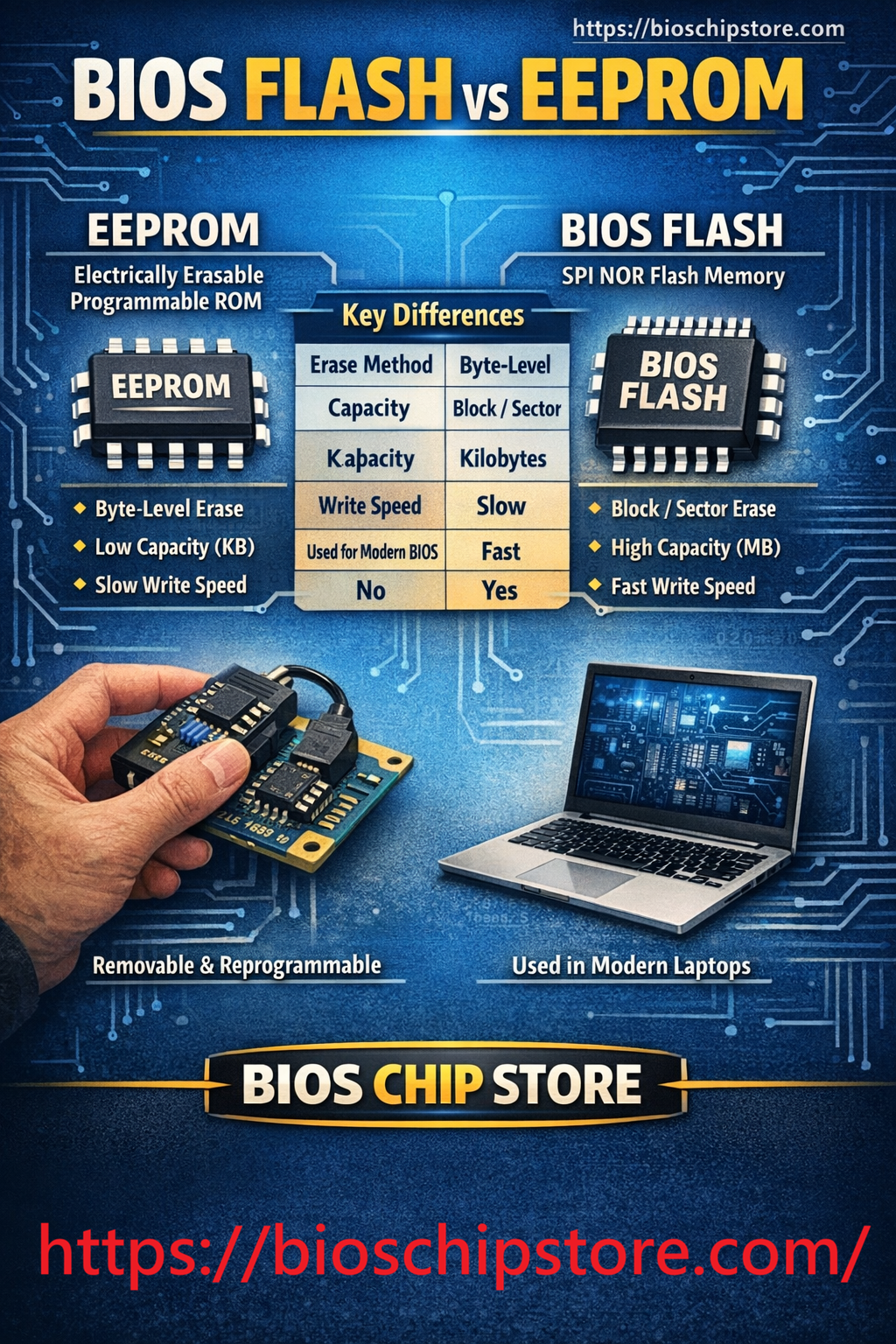

3) Key Technical Differences
| Feature | EEPROM | BIOS Flash (SPI NOR) |
|---|---|---|
| Erase Method | Byte-level | Sector / block-level |
| Typical Capacity | Kilobytes | Megabytes (8–64MB) |
| Write Speed | Slow | Faster |
| Cost per Bit | High | Low |
| Used for BIOS Today | No | Yes |
4) Why Modern BIOS Uses Flash Instead of EEPROM
Modern BIOS firmware is significantly larger than early firmware. UEFI includes drivers, security modules, and platform initialization code that requires megabytes of storage. EEPROM cannot scale efficiently to these sizes.
SPI NOR Flash provides:
- High-density storage for UEFI firmware
- Fast random reads for boot execution
- Lower cost and simpler board layout
- Support for Execute-In-Place (XIP)
To understand how firmware is structured in flash memory, see BIOS Firmware Architecture.
5) Repair and Programming Implications
For technicians, the difference matters during repair:
- EEPROM is rarely replaced in modern laptops
- BIOS Flash chips are removable and programmable via SPI
- External programmers can read, erase, and reprogram BIOS Flash
Before programming any chip, confirm its voltage and package: 3.3V vs 1.8V BIOS Chips and How to Identify Your BIOS Chip Model.
6) Common Misconceptions
- “BIOS EEPROM” – an outdated term; modern BIOS uses Flash memory
- “All EEPROMs are Flash” – false; Flash is a specific type of memory optimized for density
- “Flash is unsafe” – incorrect when programmed with proper tools and voltage
