How to Replace the Laptop BIOS Chip

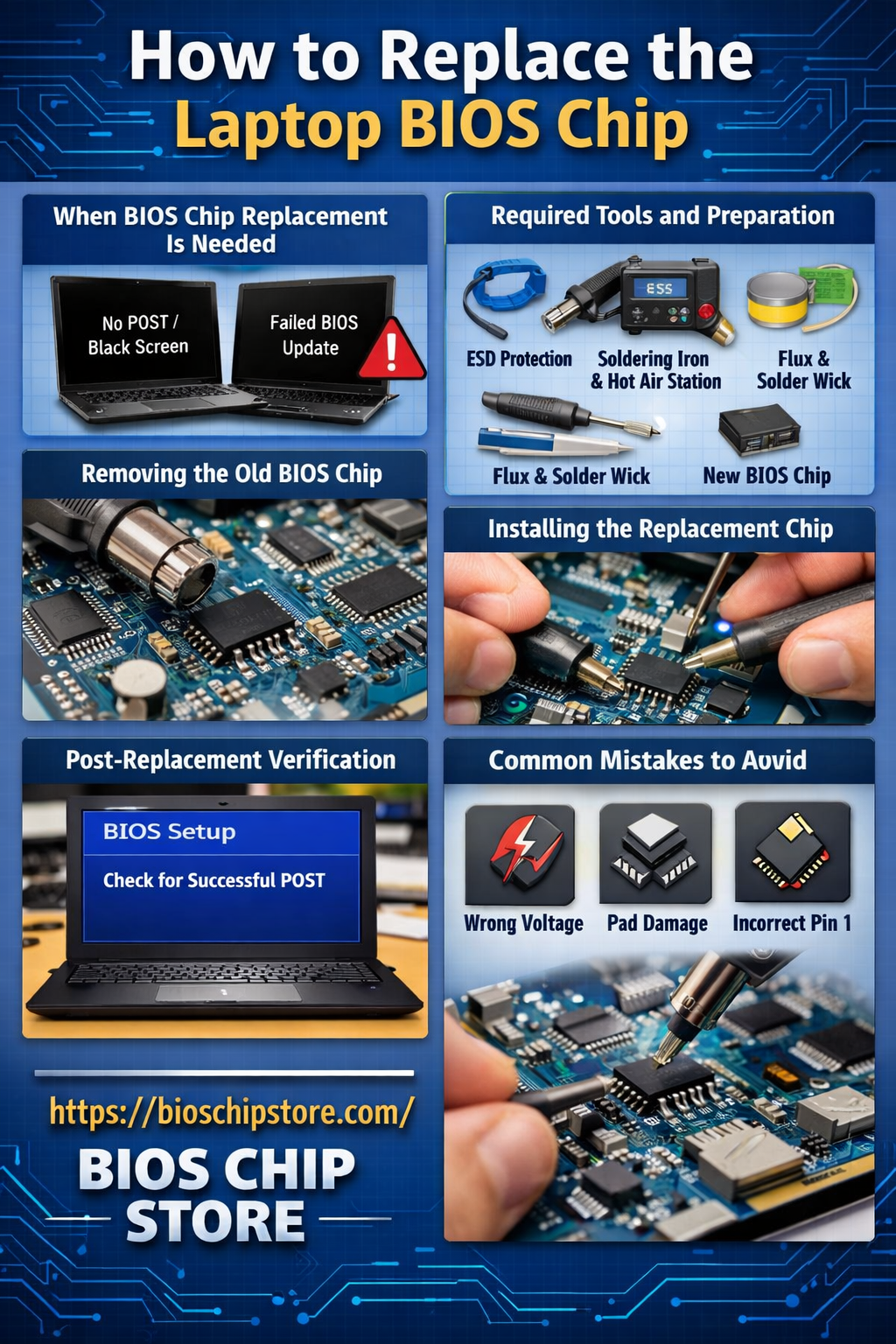

Replacing a laptop BIOS chip is often the most reliable solution when firmware corruption prevents a system from booting. This guide walks through the complete replacement process, from preparation and chip removal to soldering and verification. For foundational BIOS knowledge, visit the BIOS Knowledge Hub.
1) When BIOS Chip Replacement Is Required
BIOS chip replacement is recommended when:
- The laptop shows no POST or permanent black screen
- External flashing fails or the chip cannot be detected
- Verification errors persist after reprogramming
- The BIOS update failed and recovery is unavailable
If the failure occurred after a firmware update, review Laptop Not Booting After BIOS Update for diagnostic guidance.
2) Required Tools and Preparation
Before starting, prepare the following tools:
- Hot air rework station or fine-tip soldering iron
- Flux and solder wick
- ESD protection (wrist strap or mat)
- Replacement or pre-programmed BIOS chip
If you are unfamiliar with the chip type or package, identify it first using How to Identify Your BIOS Chip Model.
3) Removing the Original BIOS Chip
Most laptop BIOS chips use either an SOIC-8 or WSON-8 package. Apply flux around the chip and heat evenly to avoid lifting pads.
For package-specific guidance, see:
4) Installing the Replacement BIOS Chip
Align the replacement chip carefully, ensuring Pin-1 orientation matches the board marking. Incorrect orientation will prevent boot and may damage the chip.
Use minimal solder and inspect all pins under magnification. For voltage-sensitive chips, confirm whether the device requires 3.3V or 1.8V operation.
Voltage reference: 3.3V vs 1.8V BIOS Chips .
5) Post-Replacement Verification
After installation:
- Inspect solder joints for bridges or cold joints
- Reconnect power and test for POST
- Enter BIOS setup to confirm system initialization
If the system boots but shows missing serial numbers or asset data, DMI information may need to be restored.
6) Common Mistakes to Avoid
- Applying incorrect voltage to a low-voltage BIOS chip
- Overheating the PCB and lifting pads
- Forgetting to back up the original firmware
- Installing the chip with incorrect Pin-1 orientation
For deeper background on how BIOS firmware executes during boot, review BIOS Boot Process Explained .
